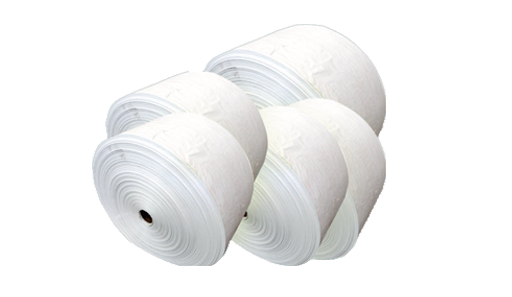

PET STRAPPING

BRAXTON, With 3 production lines and 500mt per month production capacity, we serve our products throughout India and around the world.

Storage and transportation can have a variety of effects on your goods. Vibrations, temperature variations, and sunlight can all have an adverse effect on pallet strapping material, causing packaging to become unstable. In order to meet such challenges, we have created a diverse portfolio of polyester straps.

All of our standard PET straps are available in widths ranging from 9 to 32 mm. We assist you in finding the best solution for your intended use as the largest system independent manufacturer of strapping. We also offer custom-tailored solutions that go above and beyond the norm.

Straps are produced in the most sophisticated, high-tech plant, giving us an advantage over other manufacturers. They run smoothly and without problems on fully automatic machines, even at very high speeds. Customization of the product to meet precise and specific requirements is also possible.

Facts of Pet Strap

Braxton High Performance

Braxton High Extension

Braxton High Tension

Printed Pet Strap

Facts of Pet Strap

“POLYESTER(PET) STRAP,” also known as a polyethylene terephthalate strap.
UV resistant, non-rusting.
It saves strap wear and tear in weather exposure with forceful uv balancing and water repelling technology.
PET strap with soft edges is safer then steel straps.
When a tensioned strap is cut, it does not rebound as violently as steel does, lowering the possibility of harm.
recyclable, environmentally friendly strap.
It reduces the risk of physical injury when a tensioned strap is cut since it does not rebound as violently as steel does.
minimises harm to the products during transportation.
In compared to polypropylene strapping, it can perform better because of its higher tensioning capacity of up to 40%.

Braxton High Performance

Specially designed for Fully Automatic Strapping Machines.
Easy operation.
Eco-friendliness and 100% recyclable

Braxton High Extension

Increased tenacity.
Enhanced capabilities for shock splitting, even at low ambient temperatures, without any shock splitting.
Capable of absorbing even the most extreme shock loads.
High breaking strength and up to 16% elongation are an ideal combination.
Improved edge strength.

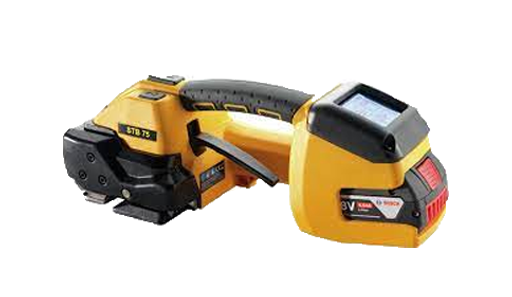

BEST FOR: Manual, Pneumatic, and Battery-Powered Tools.
Eco-friendliness and 100% recyclable.
Cutting straps are also available for cotton ginning and other bailing applications.
- 360Gm / 15.5 X 0.76
- 380Gm / 16 X 0.80
- 400Gm / 16 X 0.80
- All Are Available In 76″ / 78″ & 82″.

Braxton High Tension

Strapping that is trouble-free for difficult applications.
Reliable pallet strapping at constant high remaining strap tension.
It is appropriate for products with sharp edges found in the metal or building supply industries.

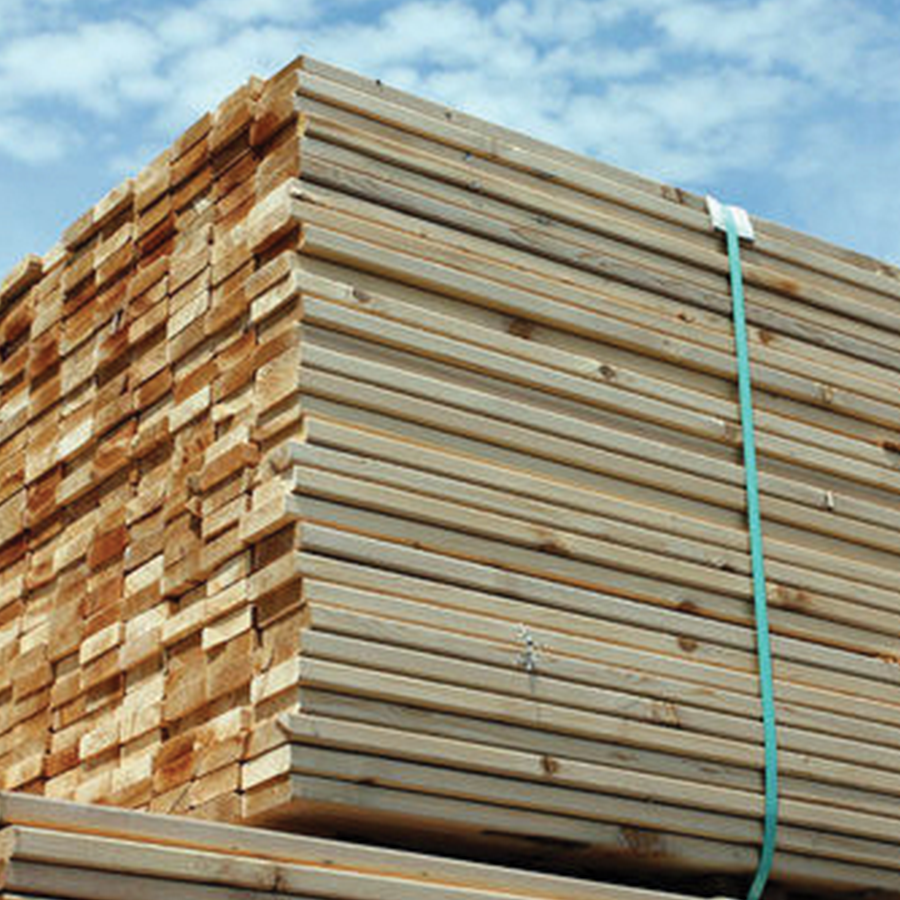

Where shock splitting is more likely to occur (e.g., wood and timber industry).
BEST FOR: Manual, Pneumatic, and Battery-Powered Tools.
Eco-friendliness and 100% recyclable.

Printed Pet Strap

WE PROVIDE TWO TYPES OF PRINTING ON STRAPS.

1. ROTOGRAVURE PRINTING.
2. FLEXO PRINTING.

Elongation

BRAXTON PET STRAPS HAVE 11-16% STREACHABILITY

Core Dimension

Available in sizes 203 X 187 Mm, 406 X 165 Mm, and 406 X 150 Mm.

Any Customization On Strap Dimension Is Available Upon Customer Request

APPLYCATION OF PET STRAP:

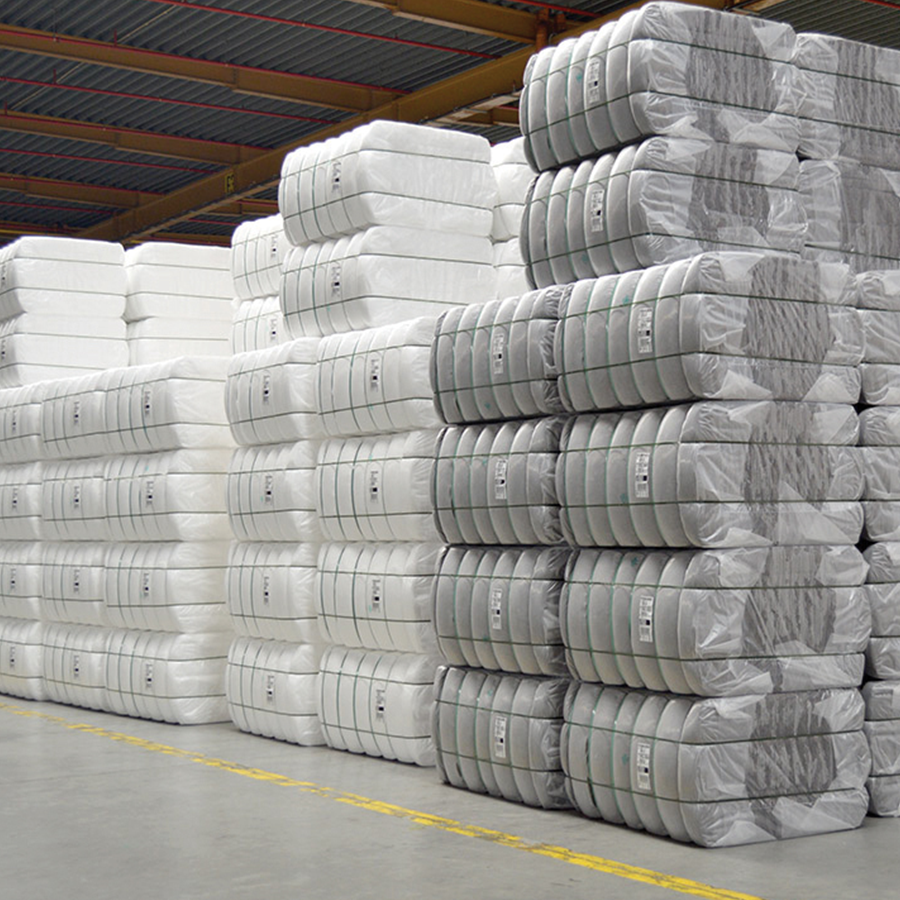

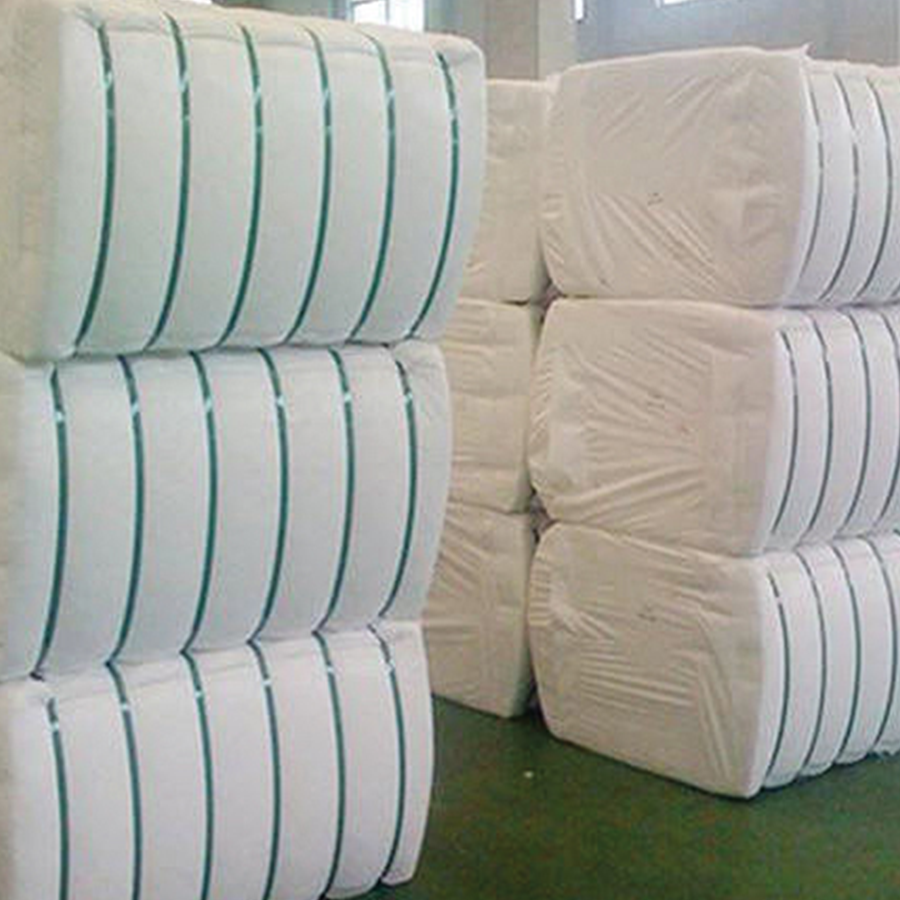

Cotton Bales
Jute/ Coir/ Rubber Bales
Wooden Crates
Polyester Yarn Bales
Paper Industries
Automobile Industries
Engineering Units
Graphite Industries

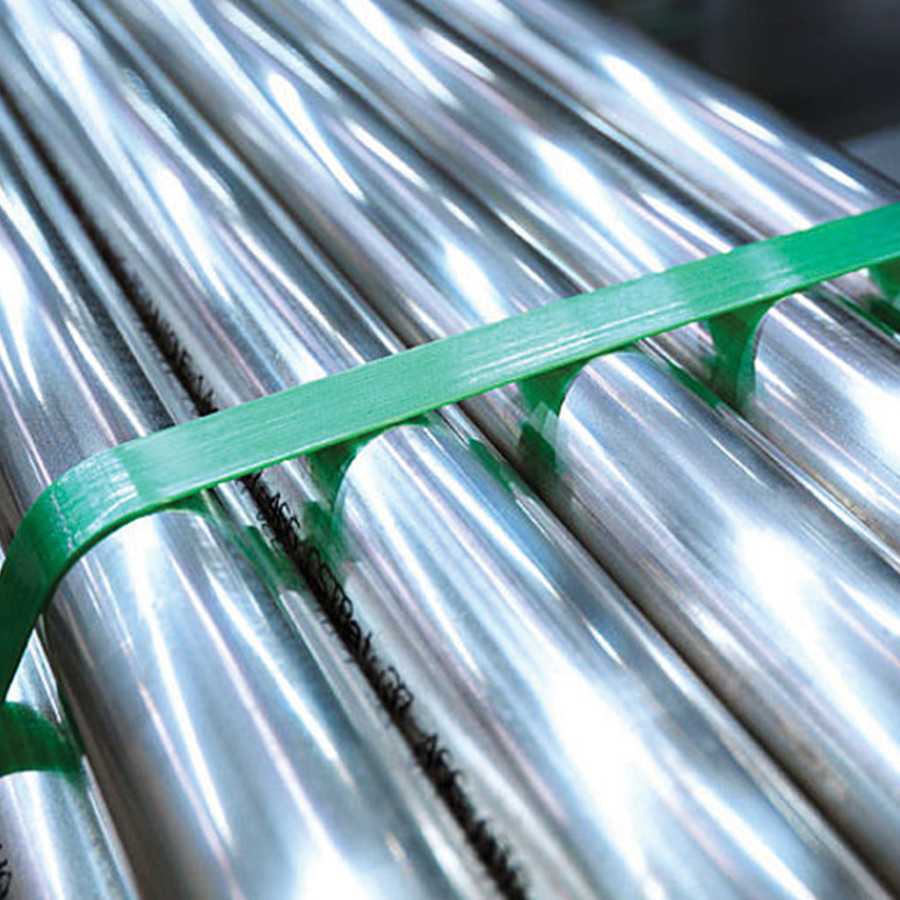

Steel Sheets, Rods, Coils, Pipes

Pallets/Palletisation Of Cartons
Ceramic Industries
Synthetic Fiber
Aluminium Ingots
Refractory/Bricks
Plywood Mfg. Unit
Beverage Industries
Float Glass / Sheet Glass
Steel Sheets, Rods, Coils, Pipes

BRAXTON - TECHNICAL DATA SHEET
Product Code	Width (mm) (+/- 0.5mm)	thickness (mm) (+/- 0.05mm)	Average Length / Meterage per coil (+/- 5%) (20kg standard per coil)		Average breaking Strength (+/- 5%) KGF
-	-	-	Smooth /Palin	Embossed/Knurling	Smooth/Plain	Embossed/Knurling
BXT-090055	9.00	0.55	3108.00	3181.42	180.18	176.02
BXT-090056	9.00	0.70	2442.00	2499.69	229.32	224.03
BXT-120060	12.00	0.60	2136.75	2187.23	262.08	256.03
BTX-120070	12.00	0.70	1831.50	1874.77	305.76	298.70
BTX-120080	12.00	0.80	1602.56	1640.42	349.44	341.38
BTX-150060	15.00	0.60	1709.40	1749.78	327.60	320.04
BXT-150070	15.00	0.70	1465.20	1499.81	382.20	373.38
BXT-155076	15.50	0.76	1305.99	1336.84	428.79	418.90
BXT-155090	15.50	0.90	1102.84	1128.89	507.78	496.06
BXT-150090	15.00	0.90	1139.60	1166.52	491.40	480.06
BXT-160080	16.00	0.80	1201.92	1230.31	465.92	455.17
BXT-160090	16.00	0.90	1068.38	1093.61	524.16	512.06
BXT-160010	16.00	1.00	961.54	984.25	582.40	568.96
BXT-190080	19.00	0.80	1012.15	1036.05	553.28	540.51
BXT-190100	19.00	1.00	809.72	828.84	691.60	675.64
BXT-190127	19.00	1.27	637.57	652.63	878.33	858.06
BXT-190130	19.00	1.30	622.86	637.57	899.08	878.33
BXT-250127	25.00	1.27	484.55	496.00	1155.70	1129.03
BXT-250130	25.00	1.30	473.37	484.55	1183.00	1155.70
BXT-320127	32.00	1.27	378.56	387.50	1479.30	1445.16
BXT-320130	32.00	1.30	369.82	378.56	1514.24	1479.30
